Light Bulb Moments with Waffle Weave

By Leigh

OK. So the waffle weave sampler turned out pretty well except for the bleeding red yarn. With the information it gave me, I pressed on to the barcode inspired dishtowels with confidence.

Waffle weave selvedge oops.However, after several inches of weaving, I was puzzled when my selvedges looked like the photo on the left. Even though I am using a floating selvedge warp thread, I was having a problem catching the outermost warp thread (which is not the floating warp). What was the problem? This hadn't happened on my sampler.

I rechecked my threading, but everything was fine there. No mistakes in the point twill threading. I decided to take another look at waffle weave in Mary Black's Key to Weaving. It didn't take long to diagnose my problem.

Yes, I had threaded in a point twill, but I had started at the center of my loom and threaded going outward. Due to the number of ends I had, my threading ended on shaft four, like this.....

The other selvedge was the same way, so that the threading started and ended on shaft four.

What it's supposed to look like is this ......

Threading is supposed to start and end on shaft one. It would seem inconsequential, but because of waffle weave's tie-up and treadling, it's not!

That was light bulb moment number one. Light bulb moment number two came while trying to decide how to correct the threading. I didn't know if it would be better to add or subtract some warp to have it start on the first shaft. To decide, I decided to recheck my project width math.

From sampling, I had learned to expect about a 30% loss in width after washing and drying. To determine the width of my warp, I had taken my project width (18 inches) and added 30%. From that calculation I measured 702 warp ends, which measured 23.5 inches in the reed.

This time, I subtracted 30% from the width in the reed (23.5), and was surprised when the result wasn't 18 inches, but about 16.5. Well, duh. 30% of 18 is not the same as 30% of 23.5. 30% of 18 is about 5.4, while 30% of 23.5 is 7. Light bulb moment number two was in realizing that how I calculated draw-in and shrinkage made a big difference in the final width of my project.

My challenge then, was to add enough extra warp for my finished project to be 18 inches, while starting and ending the threading on shaft number one.

There may have been an easier way to do this, but here's what I came up with:

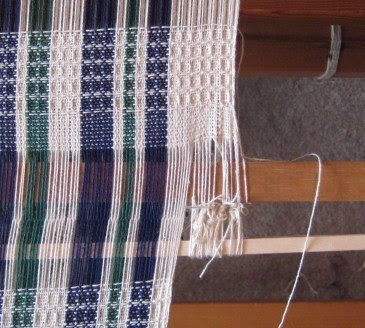

What I did was to use Peggy Osterkamp's 2-Stick Header, and tie my additional warp on to it. You can either click on the above photo to enlarge it a little, or there's a close-up below.

I weighted the two bouts of warp in the back with half gallon milk jugs filled with water. I was able to experiment with the amount of water in each jug until I got a straight, even fell.

This does widen the borders quite a bit, but who in the world (besides my readers :) is gonna know that I didn't plan it this way in the first place.

Next time I would use a stouter stick to tie the warp onto, although hopefully there won't be a next time. And perhaps someone has a better idea? Two enlightening flashes of understanding are enough for me in one day. I'm rather worn out from it all.
